About this Instrument
| Purchased From | Danville Music |
|---|---|
| Purchase Date | 2023-09-24 |
| Brand | PRS |
| Model | Grainger 5 Hardtail |
| Color Variation | Purple Iris |
| Type | Solid Body Electric Bass |
| Serial Number | 0348586 |
| Manufacturer Country | United States |
| Manufacture Year | 2022 |
| Registered? | ✅ |
| Body Construction | Solidbody |
| Top Wood | Maple |
| Back Wood | Mahogany |
| Top Carve | Violin |
| Number of Frets | 24 |
| Scale Length | 34" |
| Neck Wood | Maple |
| Neck Construction | One-Piece |
| Truss Rod | Reinforced Double-Acting |
| Neck Shape | GG 5 |
| Neck Depth at the 1/2 Fret | 53/64" |
| Neck Width at the Nut | 1 21/32" |
| Neck Width at the Body | 2 31/32" |
| Fretboard Wood | Rosewood |
| Fretboard Radius | 10" |

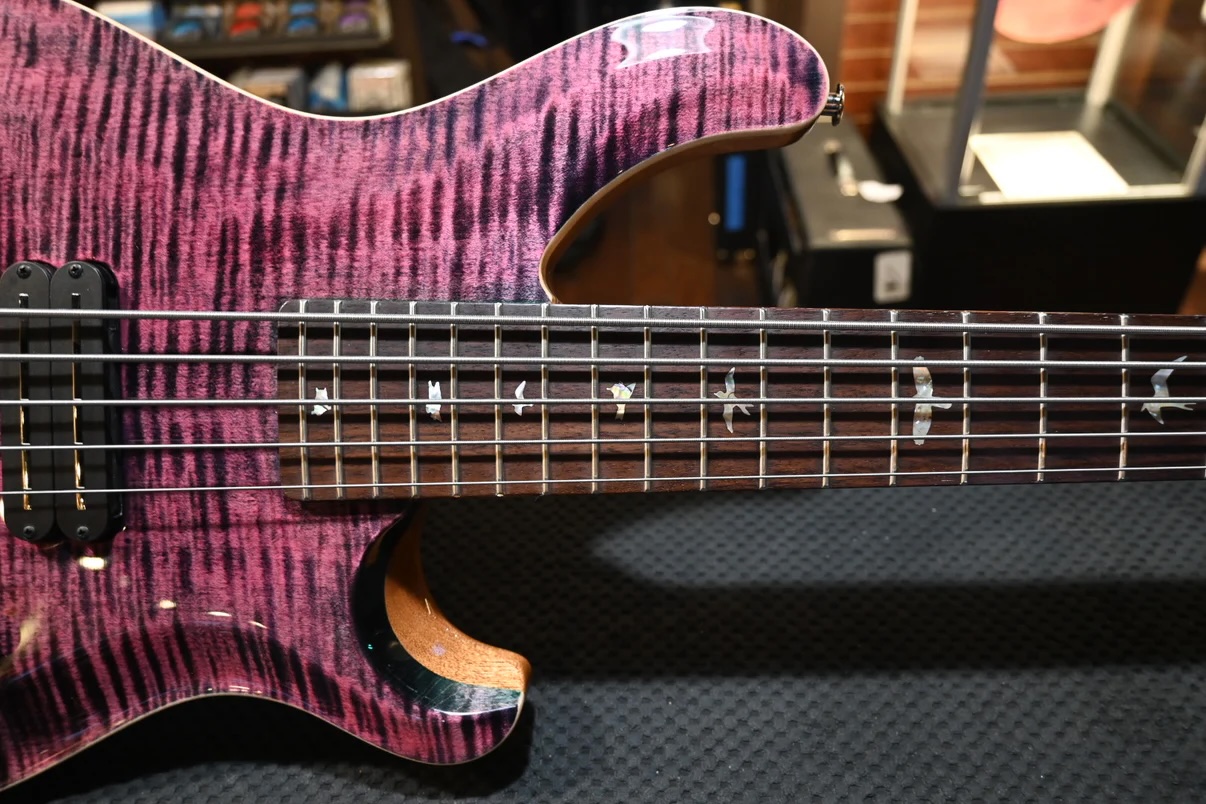

| Fretboard Inlay | Birds |

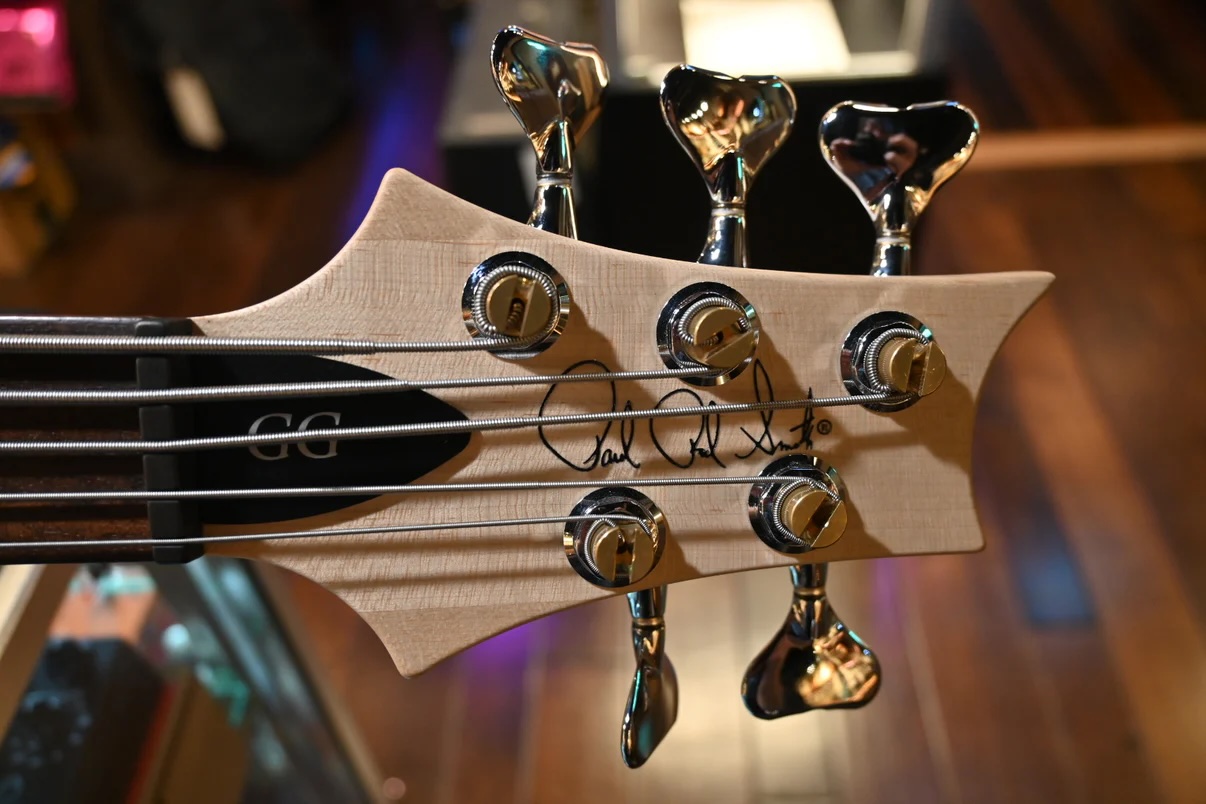

| Headstock Logo | Signature, Decal |
| Neck/Body Assembly Type | Set |
| Bridge | PRS 5-String Bass Bridge |
| Tuners | Bass Tuners |
| Hardware Type | Nickel |
| Truss Rod Cover | "GG" |
| Treble Pickup | GG5 |
| Bass Pickup | GG4 |
| Controls | PRS/Grainger Active Electronics (2 Push/Pull Volume Knobs & 3 Knob EQ) |
| Strings | 43-127 |
| Tuning | Bass (5 String): B, E, A, D, G |
| Case | Hardshell Case |
| Options | 10 Top |
| After Market | Shielding |
Control Diagram

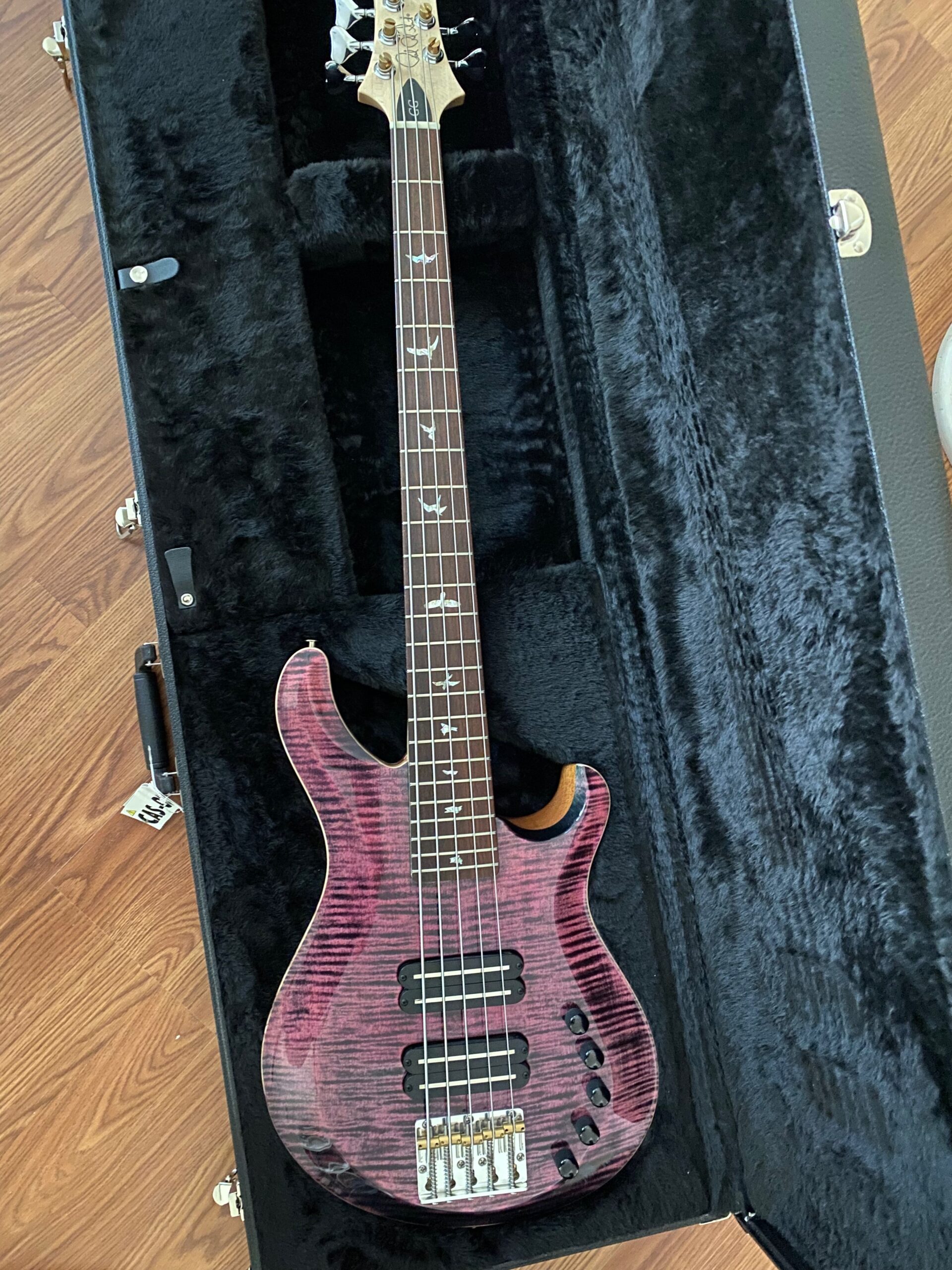

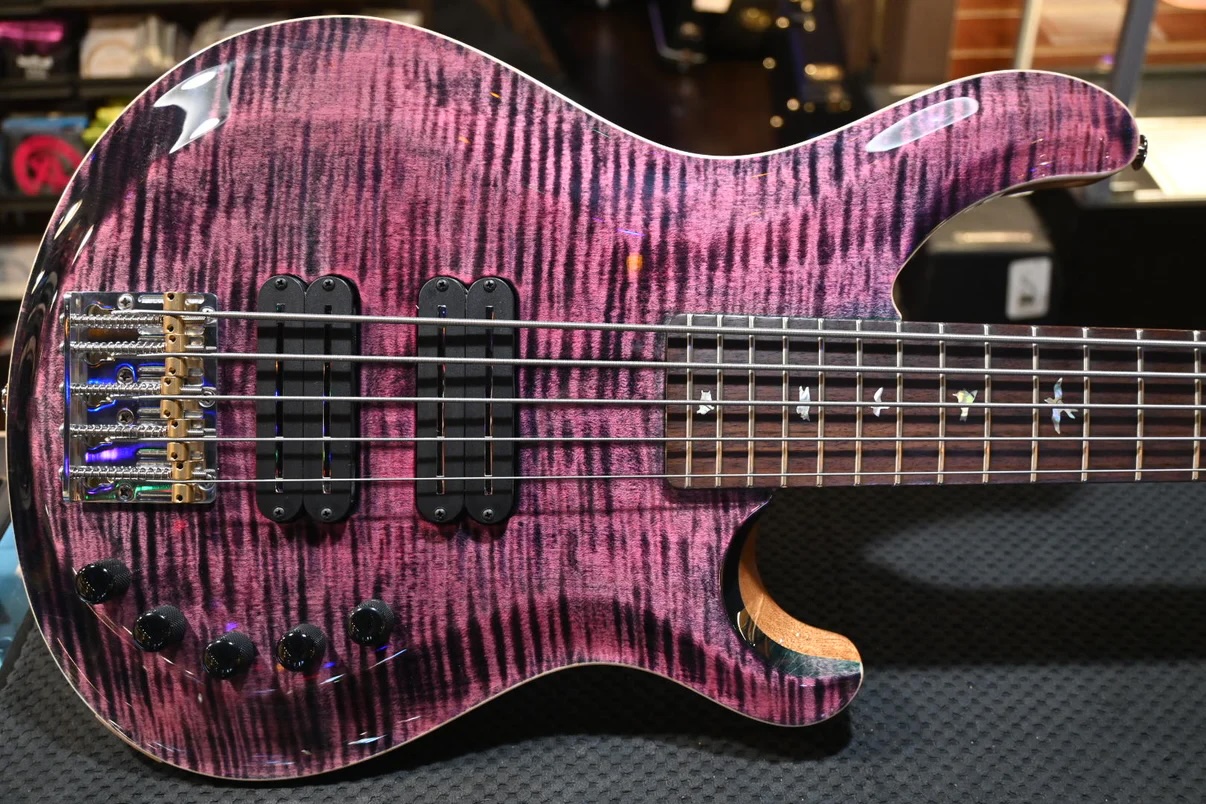

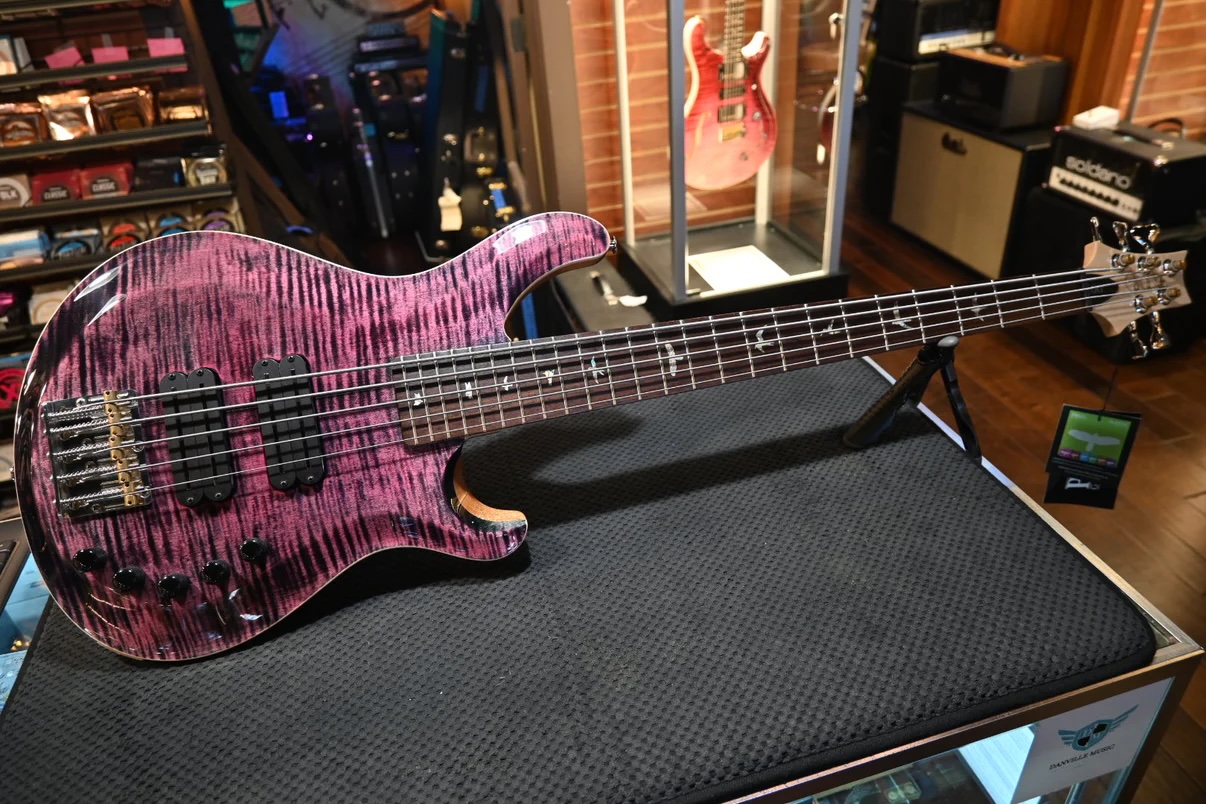

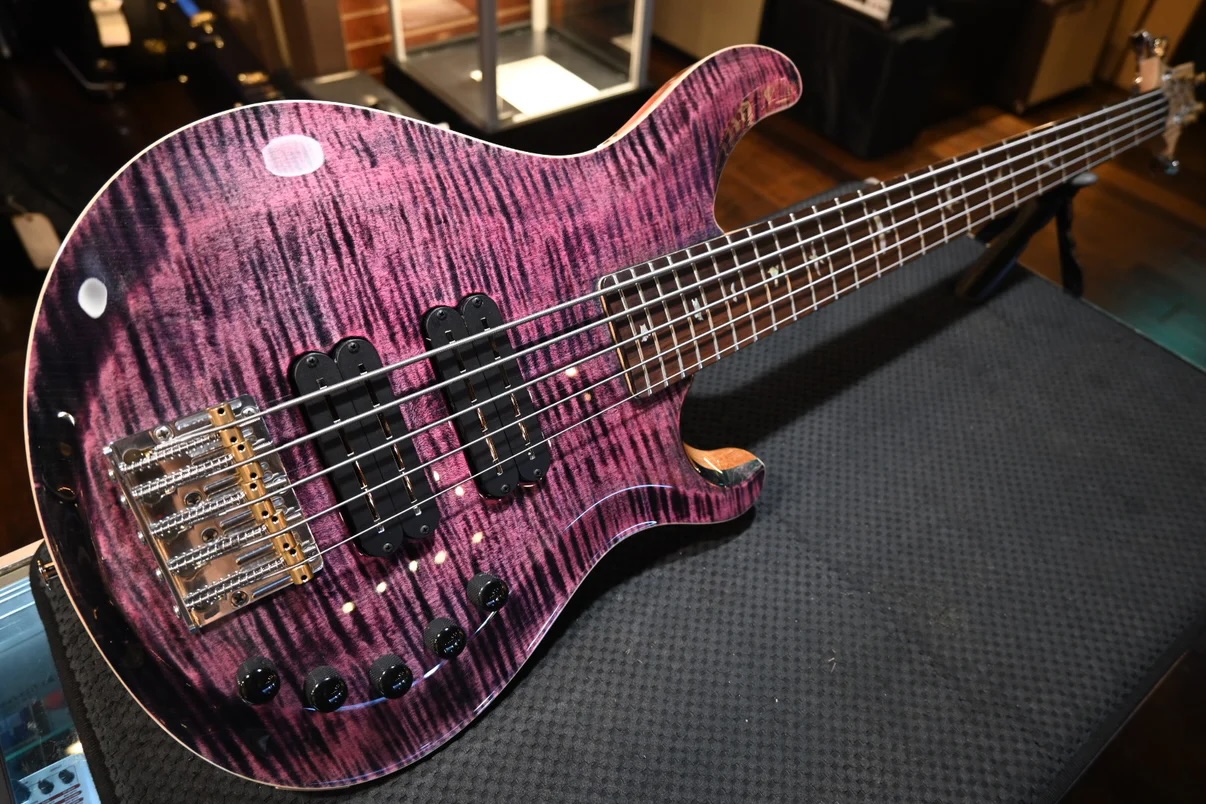

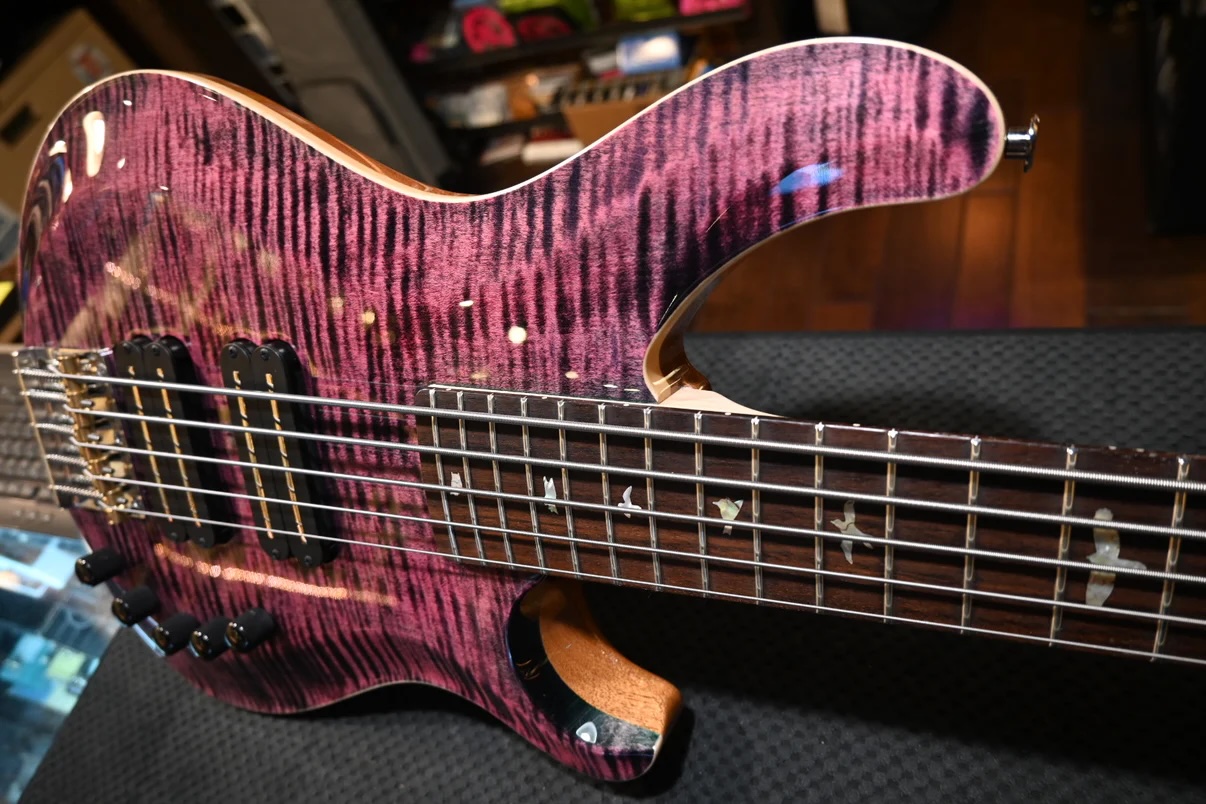

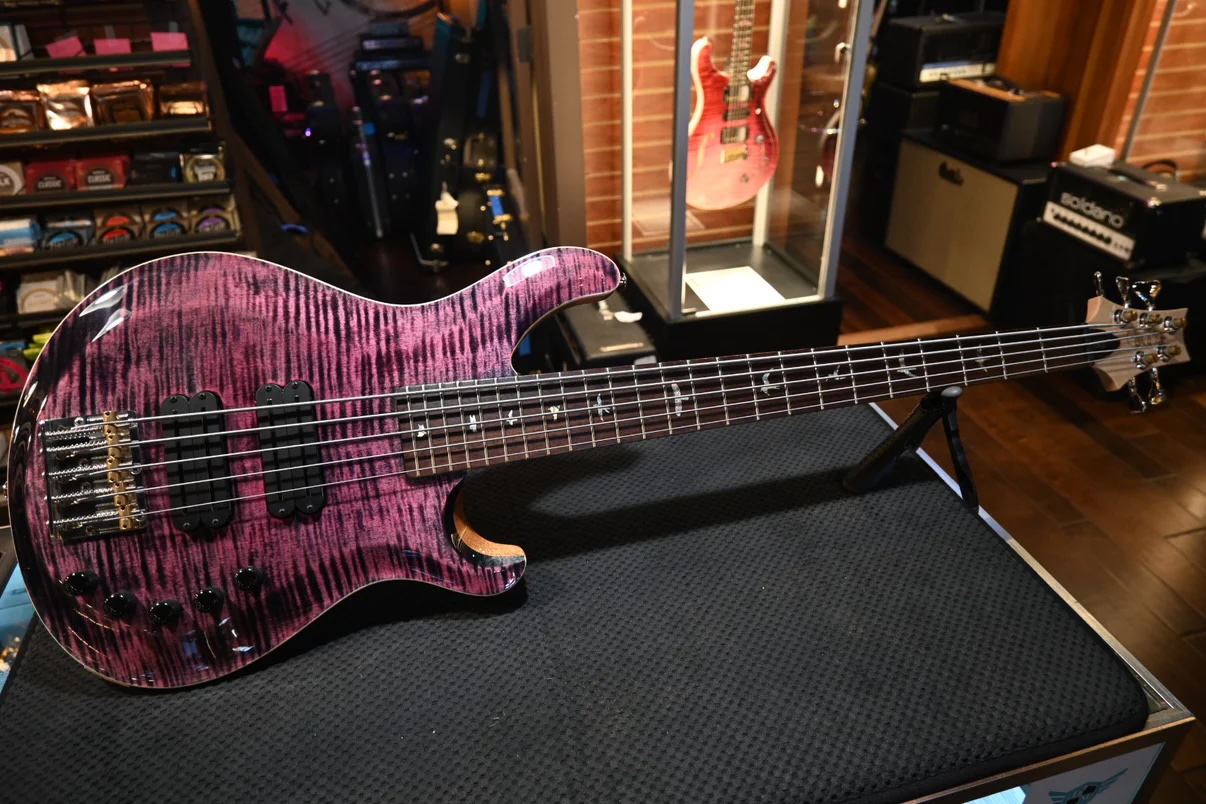

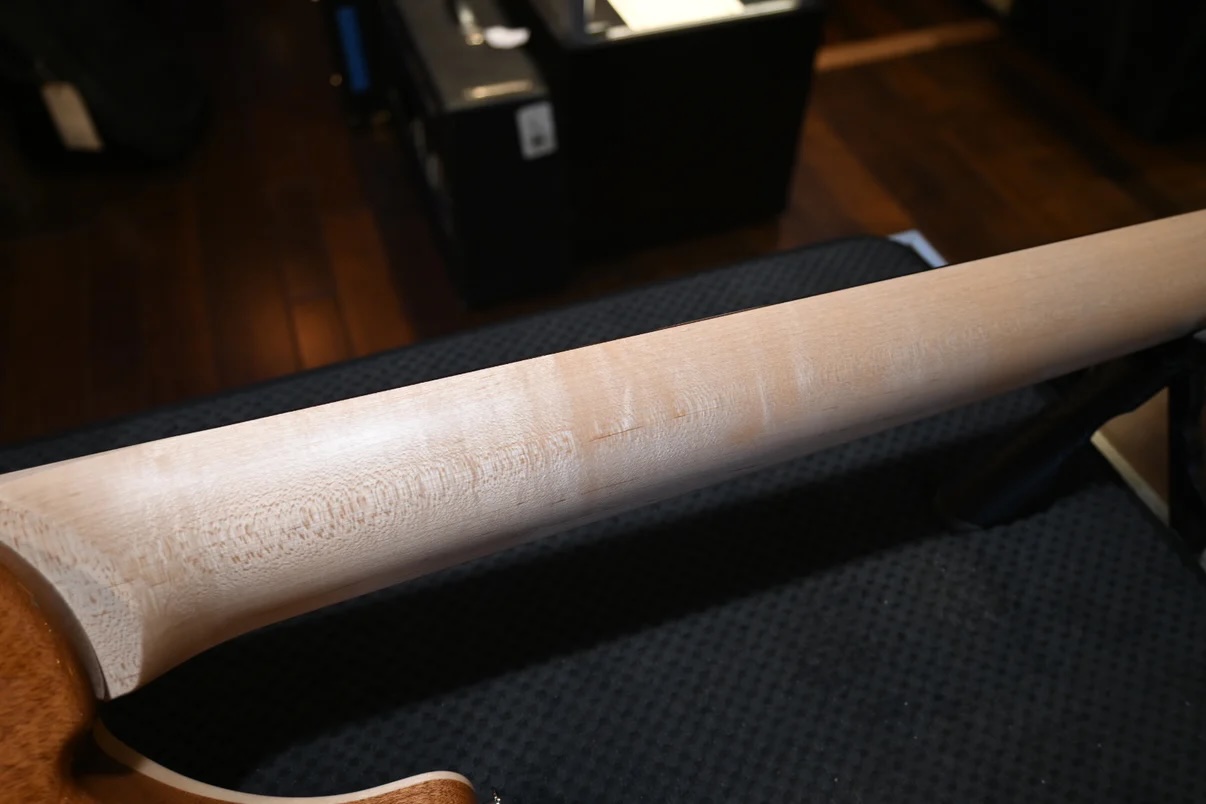

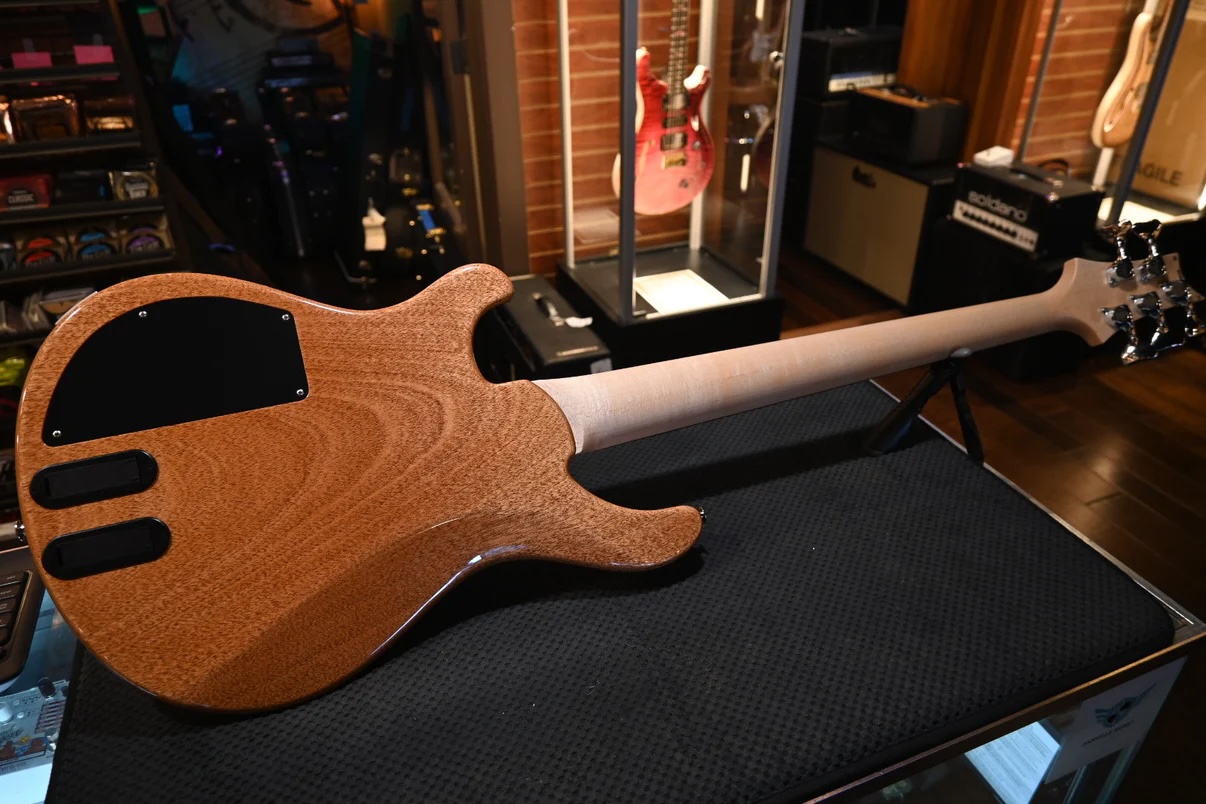

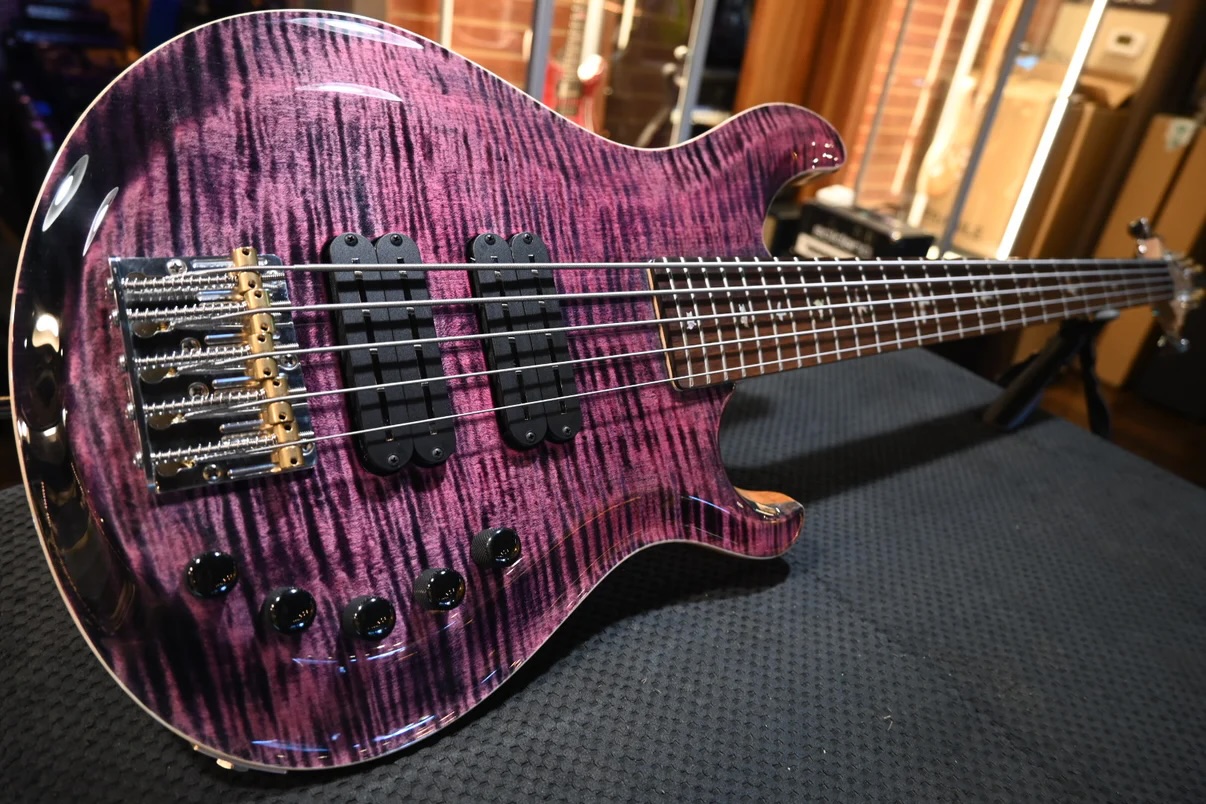

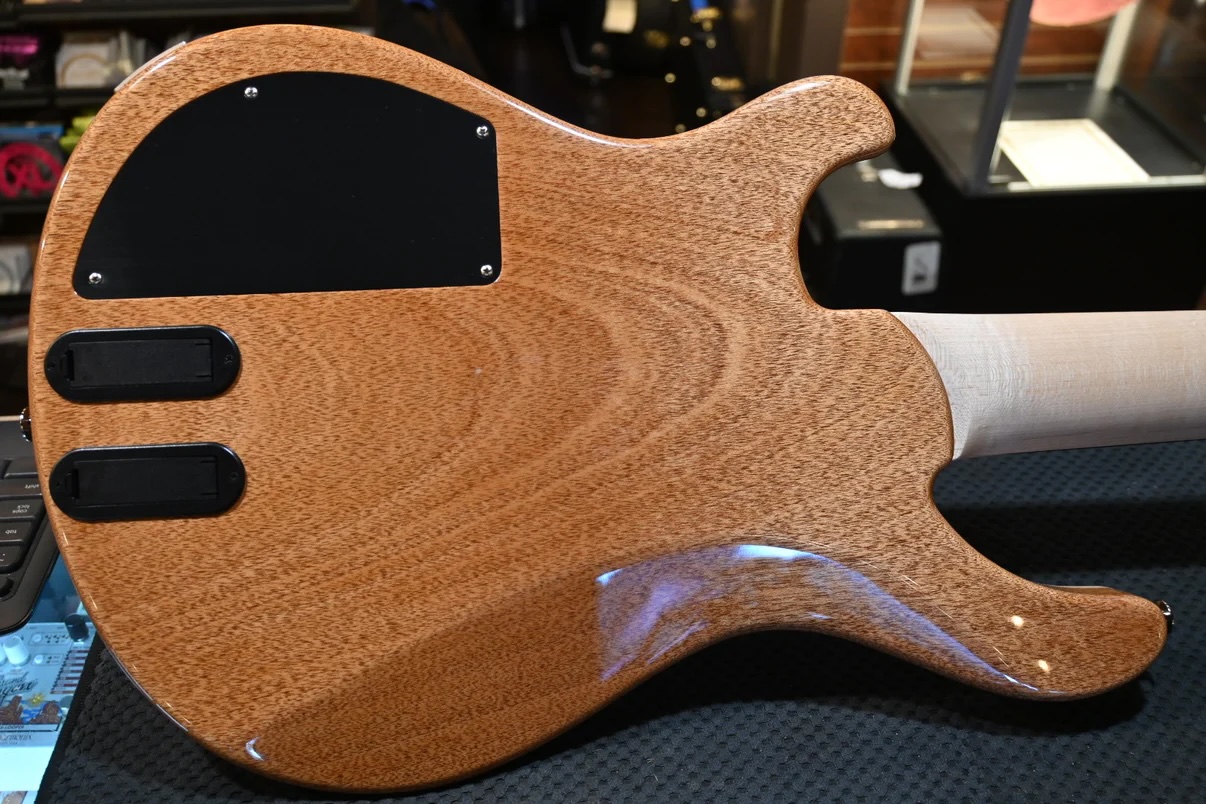

Gallery
GRAINGER 5 STRING BASS
The following information was obtained from the Manufacturer's Website
Endless Features For Studio And Stage
“These basses give me everything I need for recording and playing live...all the tone, clarity, power, and feel...everything. They are works of art and great tools for working bassists.” - Gary Grainger
The Grainger 5 is the evolution of our Private Stock Gary Grainger Bass line. As the primary designer of our Private Stock basses, Gary (John Scofield, Dennis Chambers, Frank Gambali, etc.) collaborated with many bass artists, including Wyzard (Mother’s Finest) and Kevin Walker (Justin Timberlake), to create a Core PRS bass with all the character and quality of Gary’s Private Stock models but with a more universal appeal.
SWITCHING
Knobs 1-2 are volume controls and passive/active switch:
Knob 1: Neck pickup volume.
Down = Active, Up = Passive If this knob is up and Knob 2 is down only the neck pickup (passive) is heard
Knob 2: Bridge pickup volume.
Down = Active, Up = Passive
If this knob is up and Knob 1 is down only the bridge pickup (passive) is heard.
If both knob 1 and knob 2 are in the up position, both pickups (passive) are heard.
Knobs 3-5 are a 3-band EQ control:
Knob 3: Bass EQ. Functions with pickups in active mode.
Knob 4: Mid EQ. Functions with pickups in active mode.
Knob 5: Treble EQ. Functions with pickups in active mode.
The bass will function passively without batteries as well.
PRS Bass Bridge
A vintage inspired, tried-and-true design with modern updates to improve tuning stability.

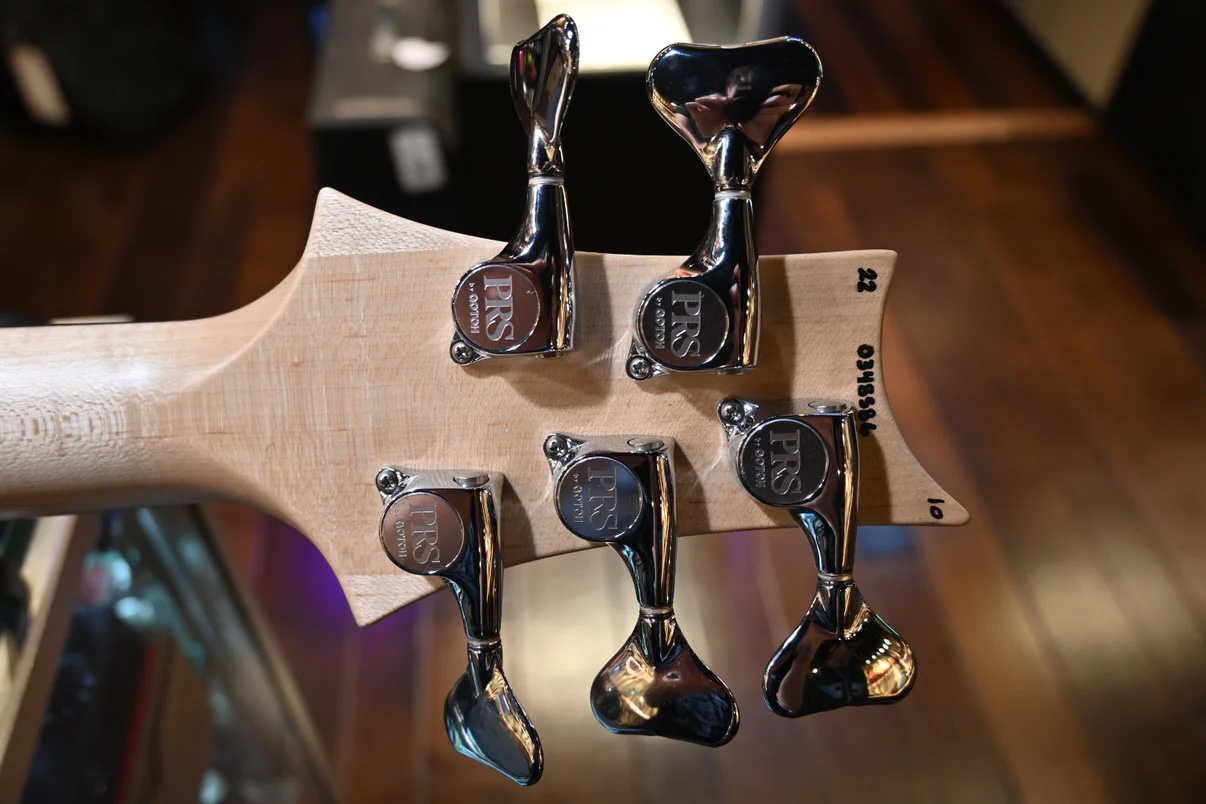

Bass Tuners
Found exclusively on PRS Grainger basses, these tuners feature an unplated brass shaft for direct string contact.
PRS GG Bass Pickups
Tone, clarity, and power in the studio or on the stage.
